Indoor HD LED display
Items |
Parameter |
|||||
Pixel Pitch |
PH1.18mm |
PH1.26mm |
PH1.454mm |
PH1.575 |
PH1.89mm |
|
Resolution |
512(W)*288(H) |
480(W)*270(H) |
416(W)*234(H) |
384(W)*216(H) |
320(W)*180(H) |
|
Pixel Configuration |
1R1G1B(3 in 1) |
|||||
LED Encapsulation |
1010 |
1010 |
1010/1514 |
1010/1514 |
1514/2121 |
|
Module size |
302.4mm*170.1mm |
302.4mm*170.1mm |
302.4mm*170.1mm |
302.4mm*170.1mm |
302.4mm*170.1mm |
|
Module resolution |
256*144 |
240*135 |
208*117 |
192*108 |
160*90 |
|
Module weight |
0.52KG |
0.52KG |
0.52KG |
0.52KG |
0.52KG |
|
Module arrangement |
2*2 |
2*2 |
2*2 |
2*2 |
2*2 |
|
Pixel Density |
718184 Pixels/㎡ |
629882 Pixels/㎡ |
473111 Pixels/㎡ |
403124 Pixels/㎡ |
279947 Pixels/㎡ |
|
Brightness |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
|
Driving Method |
Scan mode |
Scan mode |
Scan mode |
Scan mode |
Scan mode |
|
Refresh Frequency |
≥3000Hz (Support High refresh rate, depend on the system configuration) |
|||||
Contrast |
7000:1 |
|||||
Driver IC |
MBI5153 |
|||||
Grey Scale |
16Bit (depending on the system and IC configuration) |
|||||
Cabinet Size |
604.8mm*340.2mm*72.5mm(W*H*T) |
|||||
Color Temperature |
3000K-12000K adjustable |
|||||
Viewing Angle |
Horizontal 160° Vertical 140° |
|||||
Optimal Viewing Distance |
>1m |
>1.2m |
>1.4m |
>1.5m |
>1.8m |
|
Working Voltage |
AC110/220V(50~60Hz) |
|||||
Module voltage |
DC4.2V |
|||||
Max Power Consumption |
650W/㎡ |
620W/㎡ |
620W/㎡ |
600W/㎡ |
600W/㎡ |
|
Avg.Power Consumption |
217W/㎡ |
208W/㎡ |
208W/㎡ |
200W/㎡ |
200W/㎡ |
|
Lifetime |
50,000hours |
|||||
Operating Temperature |
–10℃ ~ 40℃ |
|||||
Net weight |
26Kg/㎡ |
APPLICATION

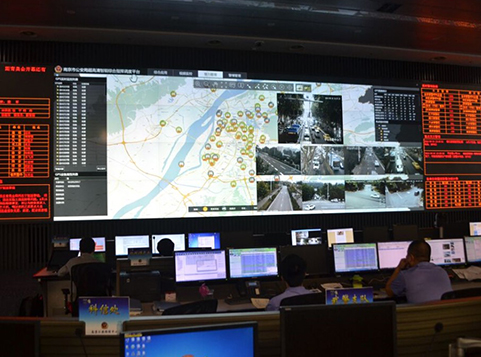

Traffic control centers

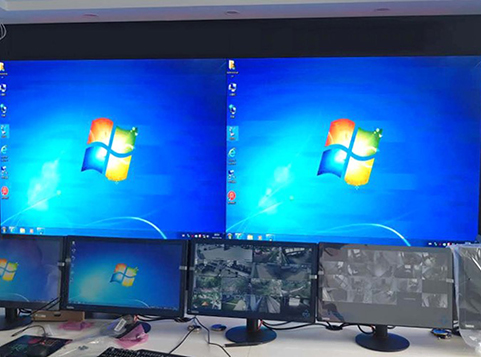

Security monitoring centers

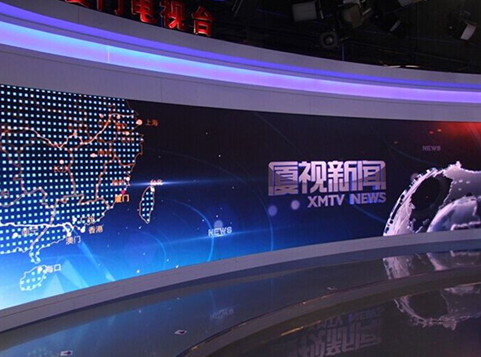

Radio and TV systems

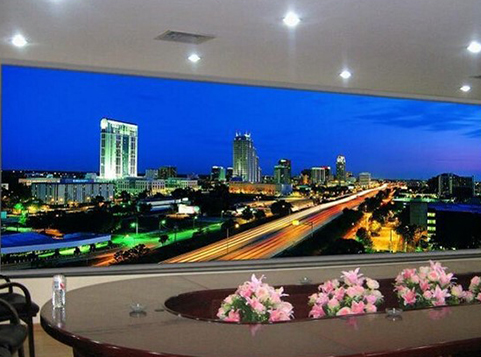

Video meeting rooms

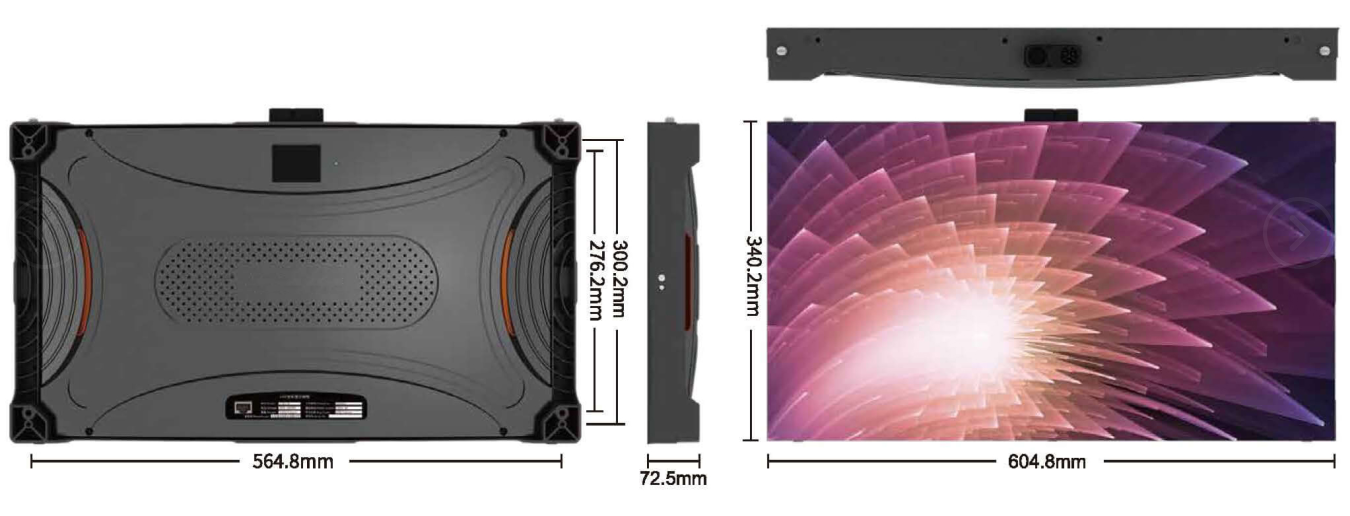

Cabinet size

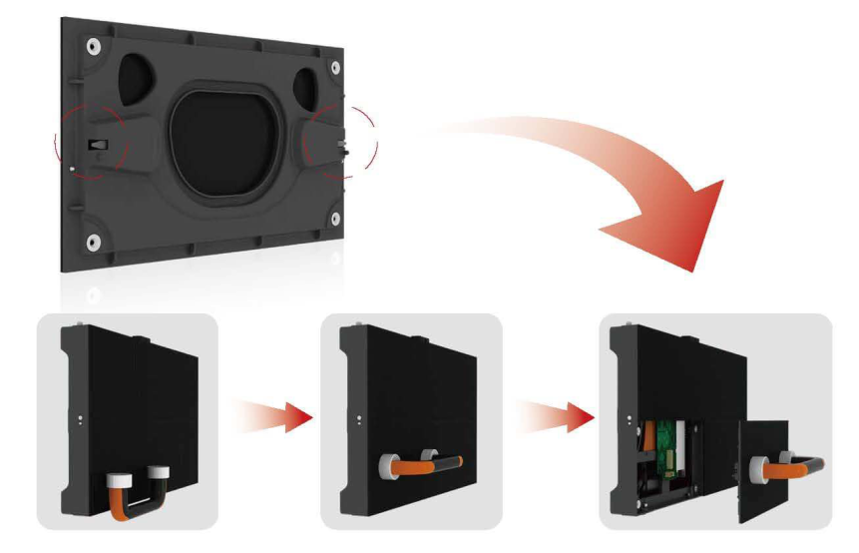

Module
16:9 2K 4K 8K

Designed according to ergonomics, 16:9 screen ratio, 2K 4K 8K large screens easily realized, high gray scale and high refresh rate in low brightness, perfect viewing experience.
