Outdoor fixed install series
Items |
Parameter |
|||||
Pixel Pitch |
PH3.33mm |
PH4mm |
PH5mm |
PH6mm |
PH8mm | PH10mm |
LED Encapsulation |
SMD 1921 |
SMD 1921 |
SMD 2727 |
White SMD 3535 |
White SMD 3535 |
White SMD 3535 |
Module Resolution(W*H) |
96*48 |
80*40 |
32*32 |
32*32 |
32*16 |
32*16 |
Pixel Density |
90,000 Pixel/ ㎡ |
62,500 Pixels/㎡ |
40,000 Pixels/㎡ |
27777 Pixel/ ㎡ |
15625 Pixel/㎡ |
10000 Pixel/㎡ |
Driving Method |
1/24 Scan |
1/10 Scan |
1/8 Scan |
1/8 Scan |
1/4 Scan |
1/2 Scan |
Refresh Frequency |
≥1920Hz (Support High refresh rate, depends on the system configuration) |
|||||
Driver IC |
Special constant current IC with height refresh rate & height grey scale |
|||||
Grey Scale |
14Bit(depending on the system and IC configuration) |
|||||
Module Size |
320*160 |
320*160 |
160*160 |
192*192 |
256*128 |
320*160 |
White balance Brightness |
6000cd/㎡ |
6000cd/ ㎡ |
5500cd/㎡ |
7000cd/㎡ |
6500cd/ ㎡ |
5500cd/㎡ |
Color Temperature |
8000K±500 (adjustable) |
|||||
Viewing Angle |
Horizontal 130°Vetical 110° |
|||||
Optimal Viewing Distance |
>3m |
>4m |
>5m |
>6m |
>8m |
>10m |
Working Voltage |
DC4.2V |
|||||
Max Power Consumption |
750W/SQM |
750W/SQM |
750W/SQM |
750W/SQM |
750W/SQM |
800W/SQM |
Avg. Power Consumption |
300W/PCS |
300W/PCS |
300W/PCS |
300W/PCS |
300W/PCS |
320W/PCS |
Lifetime |
50,000hours |
|||||
Operating Temperature |
–20℃ ~ 65℃ |
|||||
Net weight |
38Kg/SQM |
38Kg/SQM |
38Kg/SQM |
38Kg/SQM |
38Kg/SQM |
38Kg/SQM |
APPLICATION
Widely used outside hotel, airport, station, shopping mall, stadium, and other places.

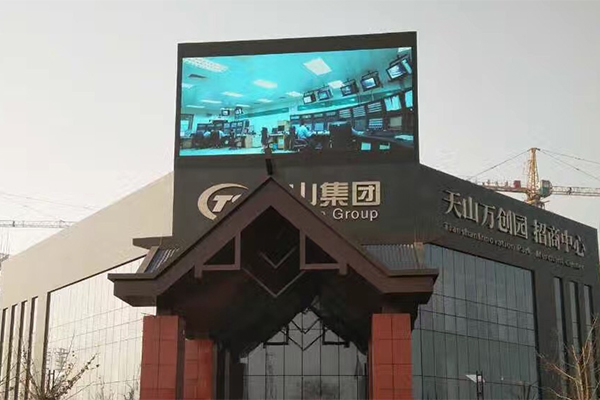

Airport/station

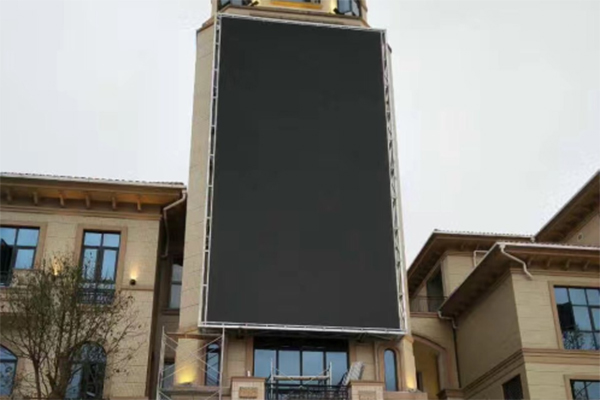

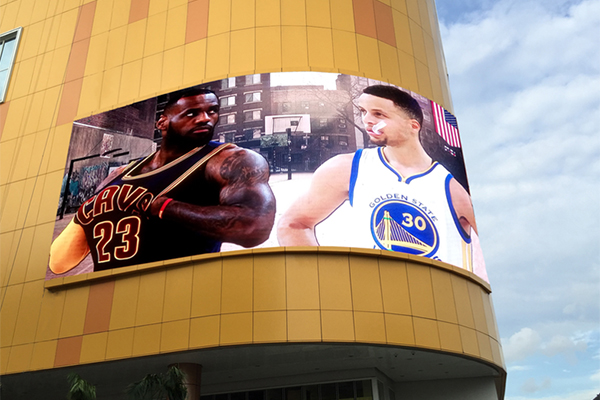

Mounted on the wall

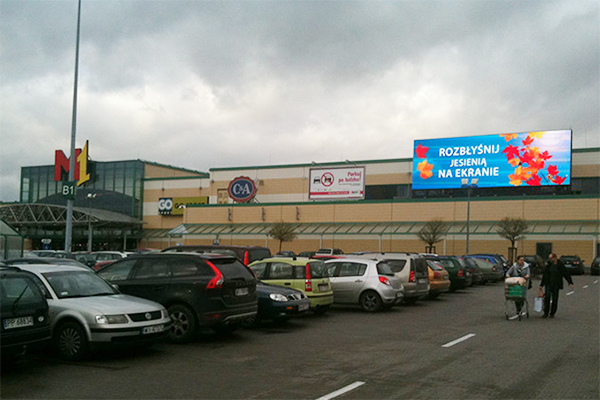

Super market

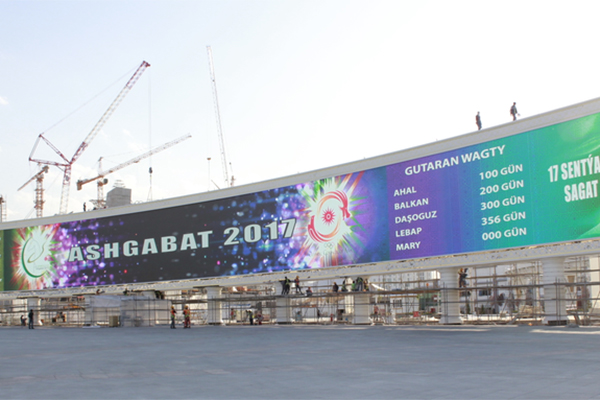

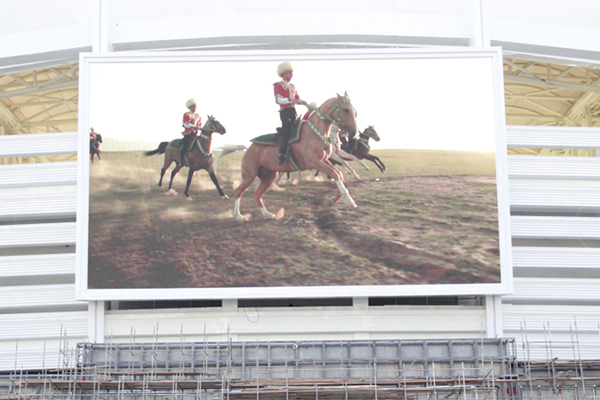

Stadium

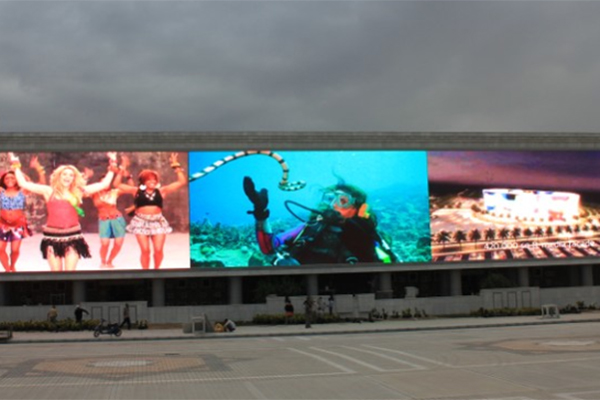

Stadium

Street

Install method

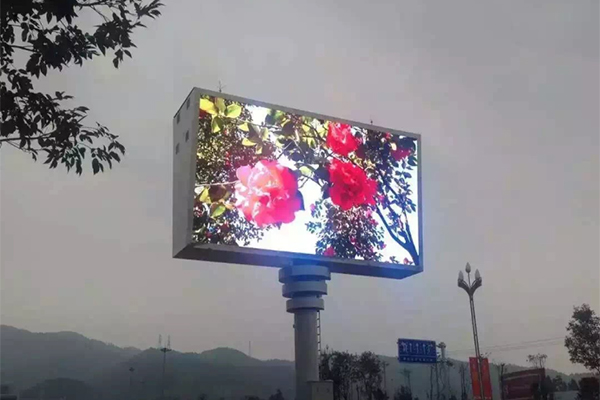

One Pillar support install

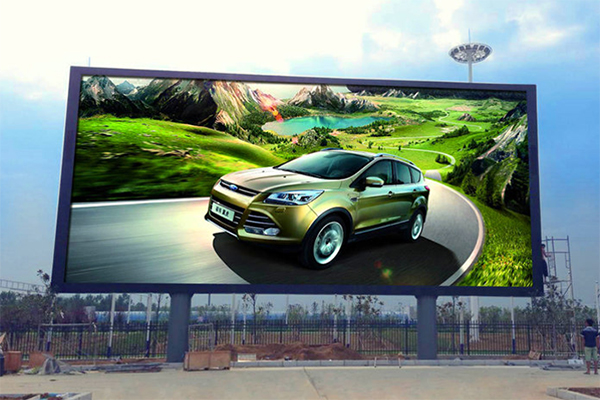

2 Pillars support install

On rooftop Install

Supporter frame
Maintenance method

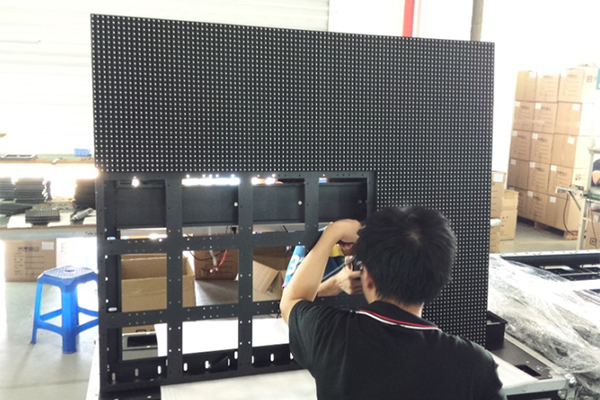

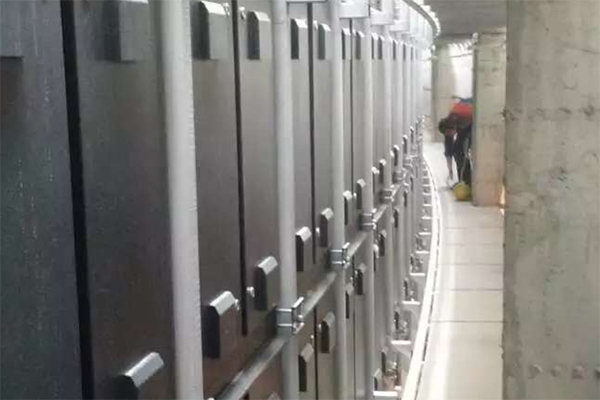

Back open maintenance

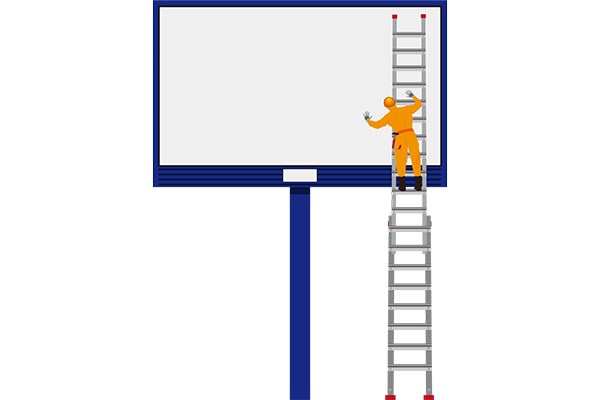

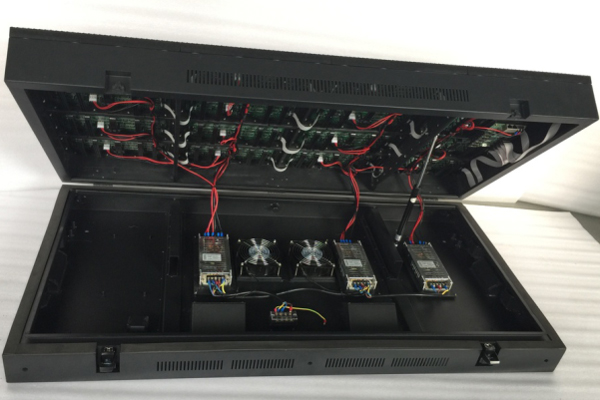

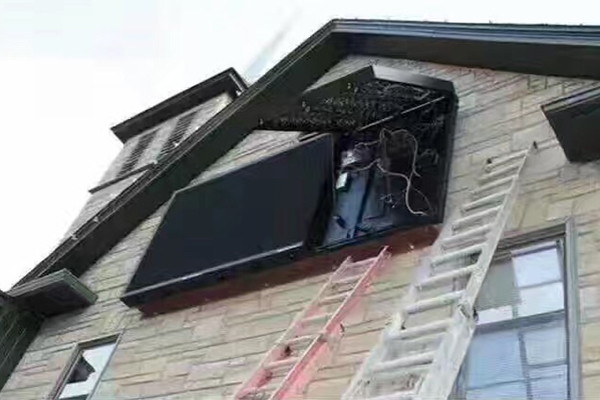

Front open (door open maintenance)

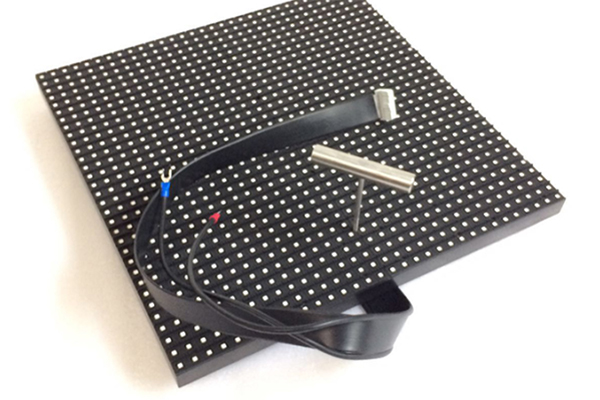

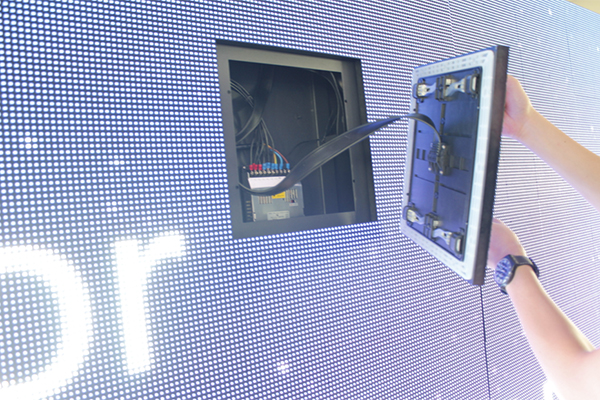

Front open (module open maintenance)


This type only have P8 and P10, module size of 320*320mm

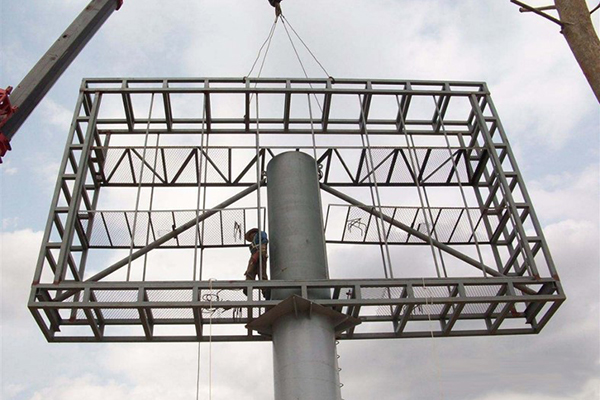

Pillars & frame
